Name: QZ051 120-LED Red Light Therapy Belt
SKU: QZ051
Price: 90.00 USD
Availability: InStock

QZ051 120-LED Red Light Therapy Belt

$90.00

Wholesale Personal Care Devices platform for private-label and distribution programs.

Unit price: US$90.00
MOQ: 100 units · OEM / ODM customization available

Built for a clearer private-label brief.

A compact body-light pad and strap system intended for flexible, wearable home-use routines.

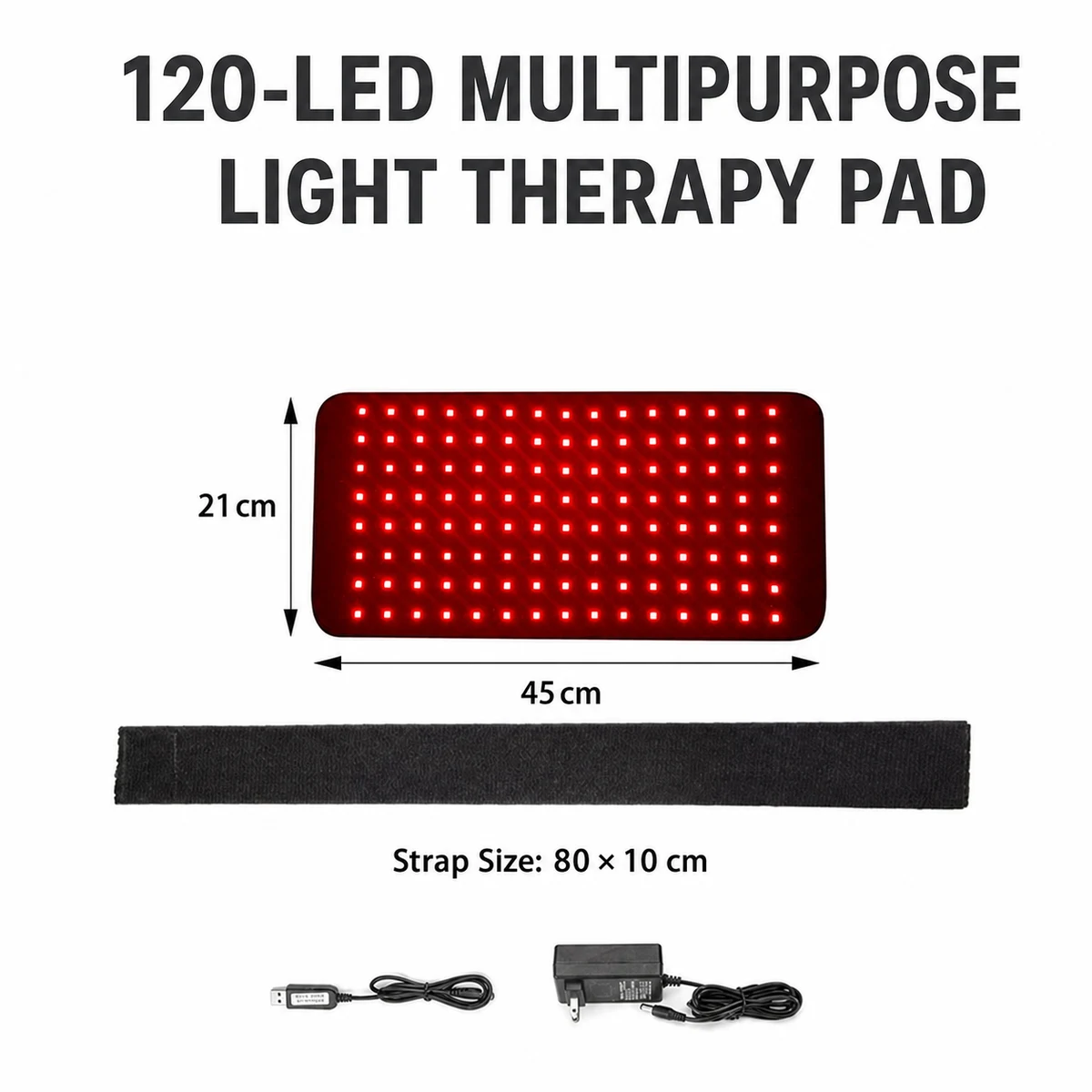

120 LEDs
45 × 21 cm light pad
80 × 10 cm strap
660 / 850 nm — supplier specification
Tested to UL 859

Regulatory status, kept model-specific.

QZUL051-1 through QZUL051-5 were tested to UL 859 under report ENC2601110GZ83U1; this is not a UL Listing or UL certification.

Documentation availability does not automatically transfer to a changed enclosure, electronics package, accessory set or market claim. We review the final configuration before confirmation.

Turn the platform into your product.

Discuss colour, logo treatment, packaging, accessories, controller presentation and market documentation with our project team.

Request this platform

A compact wearable red-light pad with 120 dual-wavelength LEDs (660 nm red + 850 nm near-infrared), five intensity levels up to 65 mW/cm² and an elastic strap system for waist, back or joint placement.

Specifications

Model	QZ051
Material	Neoprene (diving fabric)
LED count	120 LEDs — 660 nm (120 chips) + 850 nm (120 chips)
Irradiance	13.5 / 29 / 45 / 55 / 65 mW/cm² (5 levels, ±10%)
Power	20 W
Power supply	12 V / 2 A DC adapter, AC 110–240 V
Pad size	44.5 × 20.8 × 1.75 cm
Retail box	28.3 × 21.5 × 6 cm, 0.57 kg
Carton	30 pcs / 44.2 × 37.3 × 57.7 cm / 18.6 kg
Package	Belt, controller, DC adapter, AC cable, strap, manual

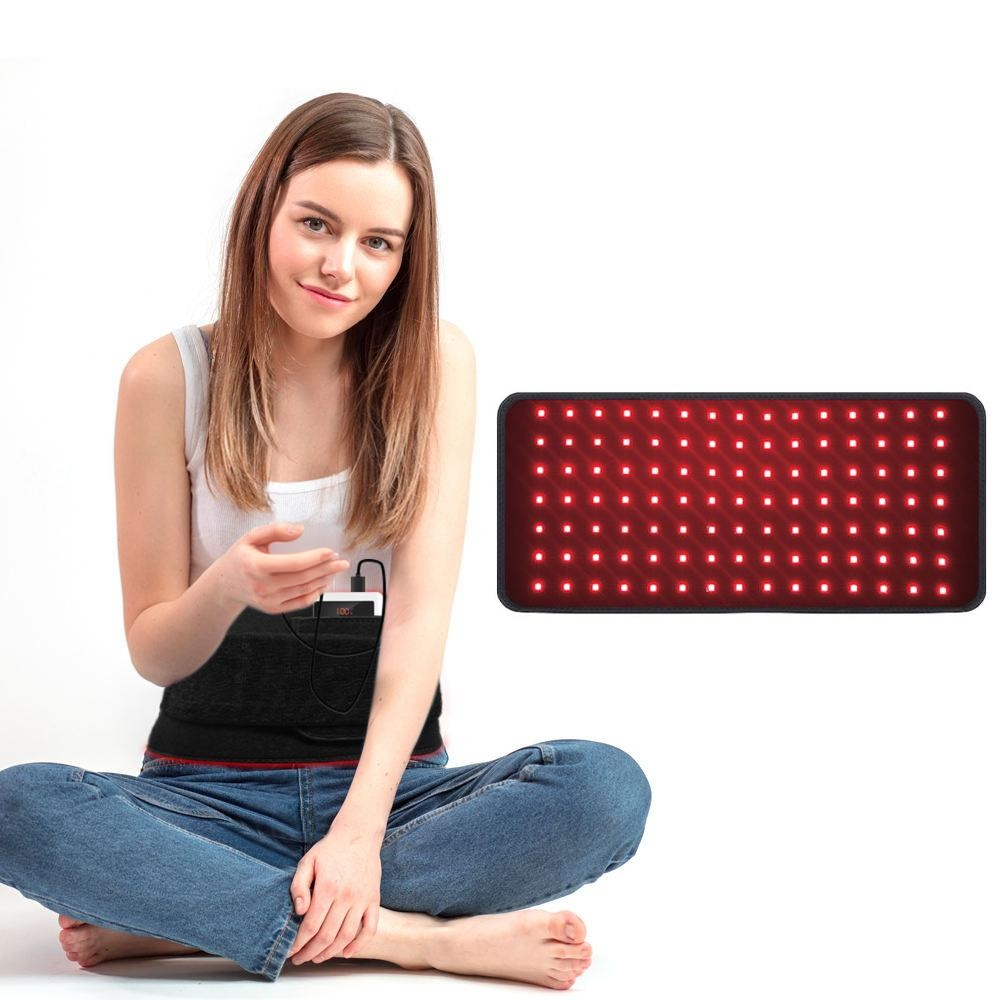

120-LED Red Light Therapy Belt detail page 1

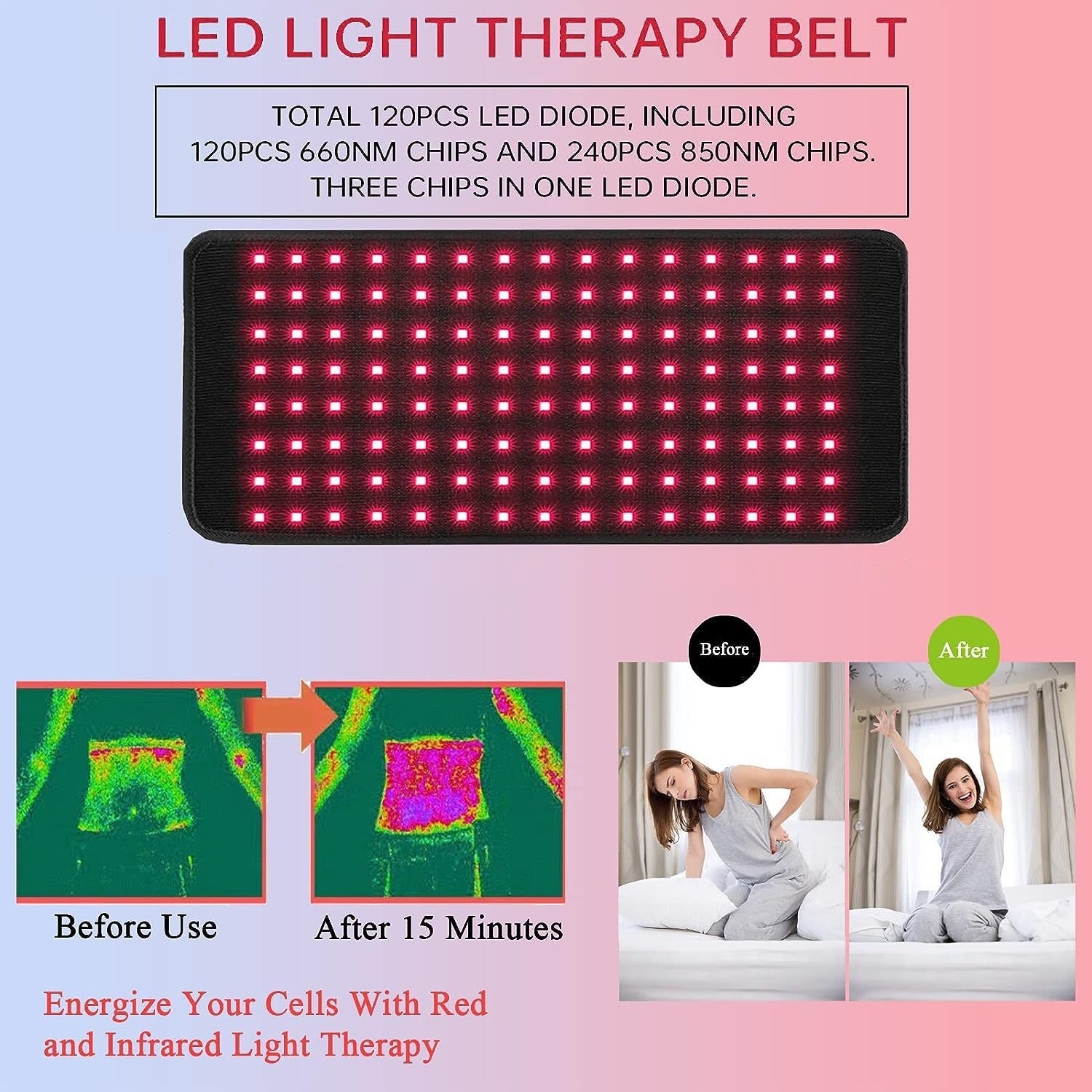

120-LED Red Light Therapy Belt detail page 2

120-LED Red Light Therapy Belt detail page 3

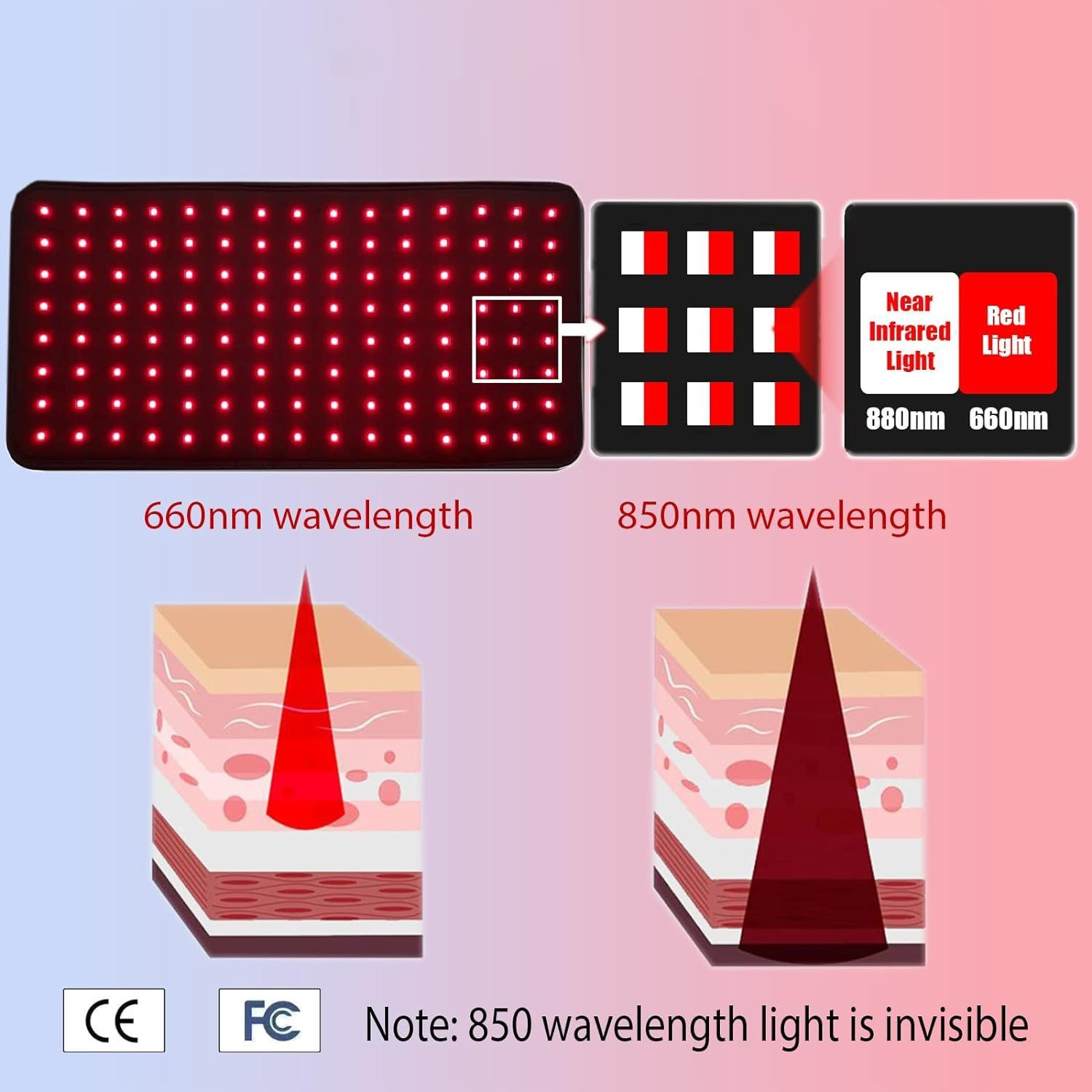

120-LED Red Light Therapy Belt detail page 4

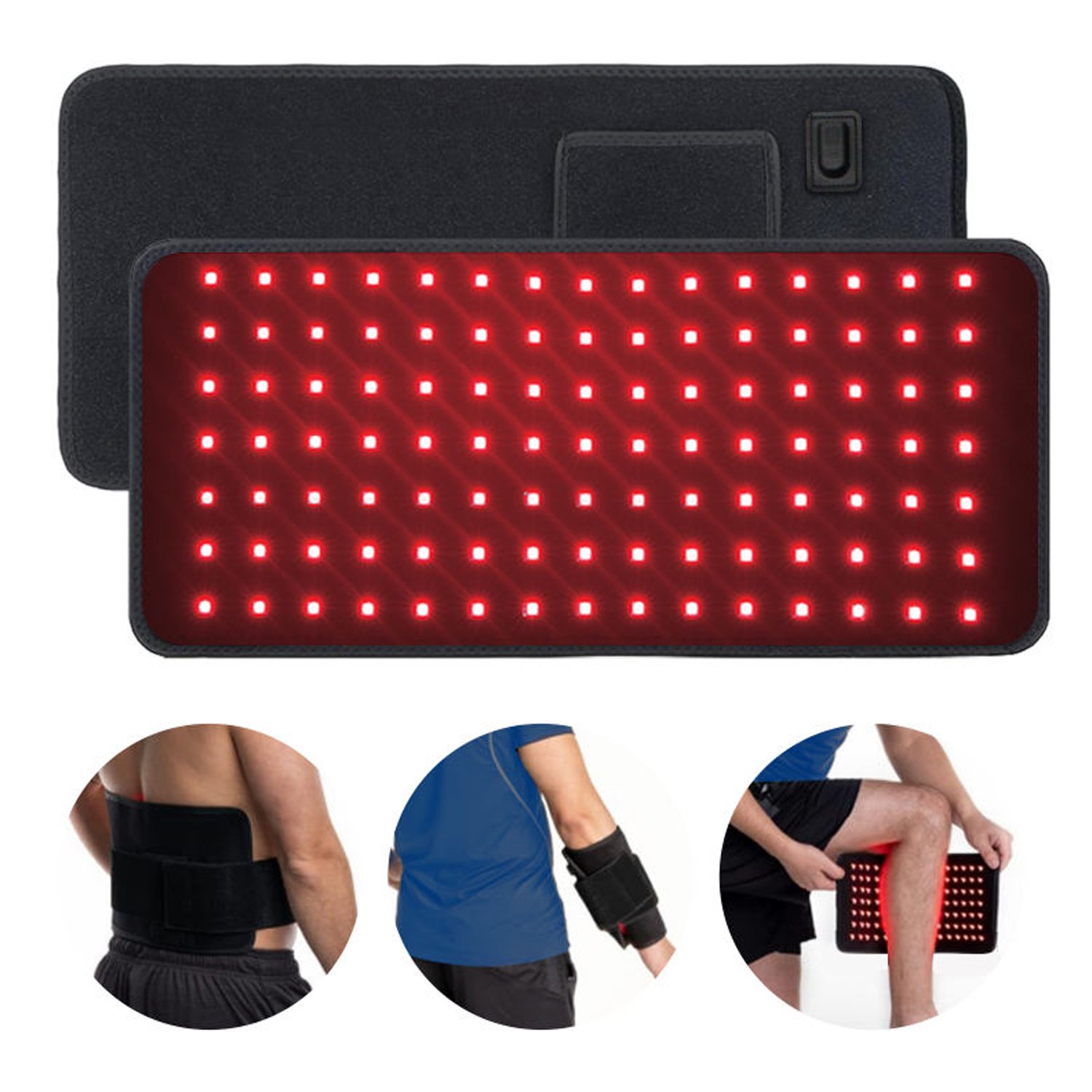

120-LED Red Light Therapy Belt detail page 5

Model documentation

Evidence for this model.

Open the supplied certificates, test reports and supporting transport documents associated with this product family.

120-LED Red Light Belt - RoHS Test Report document preview

Source PDF120-LED Red Light Belt – RoHS Test ReportOpen document ↗

120-LED Red Light Belt - UL 859 Test Report document preview

Source PDF120-LED Red Light Belt – UL 859 Test ReportOpen document ↗

Scope note: The supplied reports list QZUL051-series variants for the 120-LED belt family. Confirm the exact ordered variant and destination-market requirements before production.
